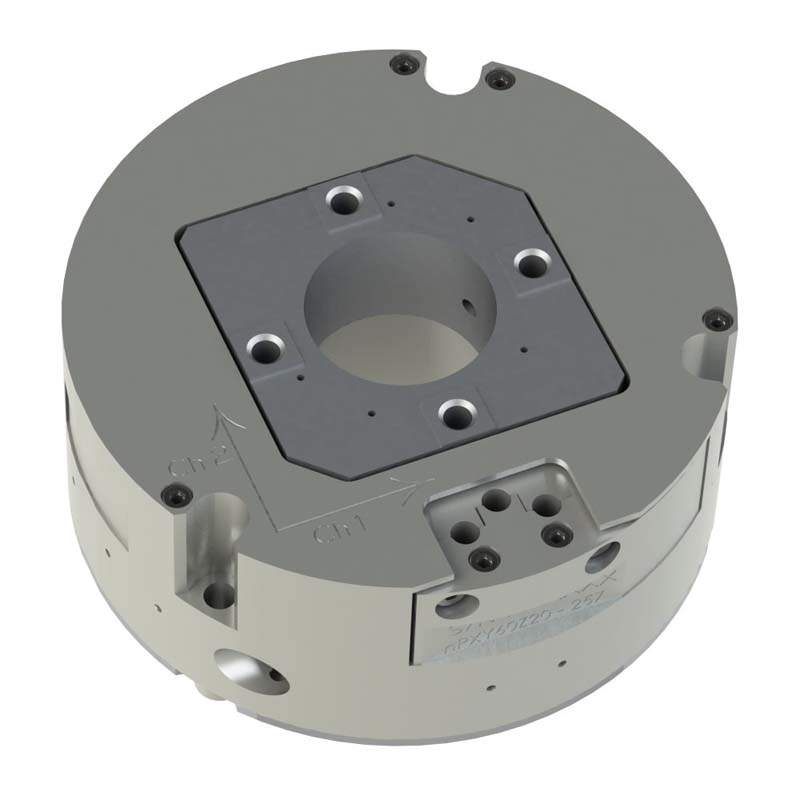

NPXY60-258
Non-magnetic, UHV-compatible piezo stage
A non-magnetic, UHV compatible, XY nanopositioning piezo stage. Very fast and precise, includes a small footprint and versatile aperture.
| Part Number | 3715258 |
| Footprint | 30mm H X 70mm ∅ |
| Aperture | 30mm ∅ |
| Material | Aluminum |
| Maximum Load | 1 kg |
| Nanomotion Control | XY |
| Closed-loop Travel | 60µm|60µm |
| Position Noise | 0.4nm|0.4nm |
| Resonant Frequency | 750Hz|750Hz |
| Settling Time | 5ms|5ms |
| Linearity Deviation | 0.03%|0.03% |
| Controller | LC.402 |
