NPZ100-209

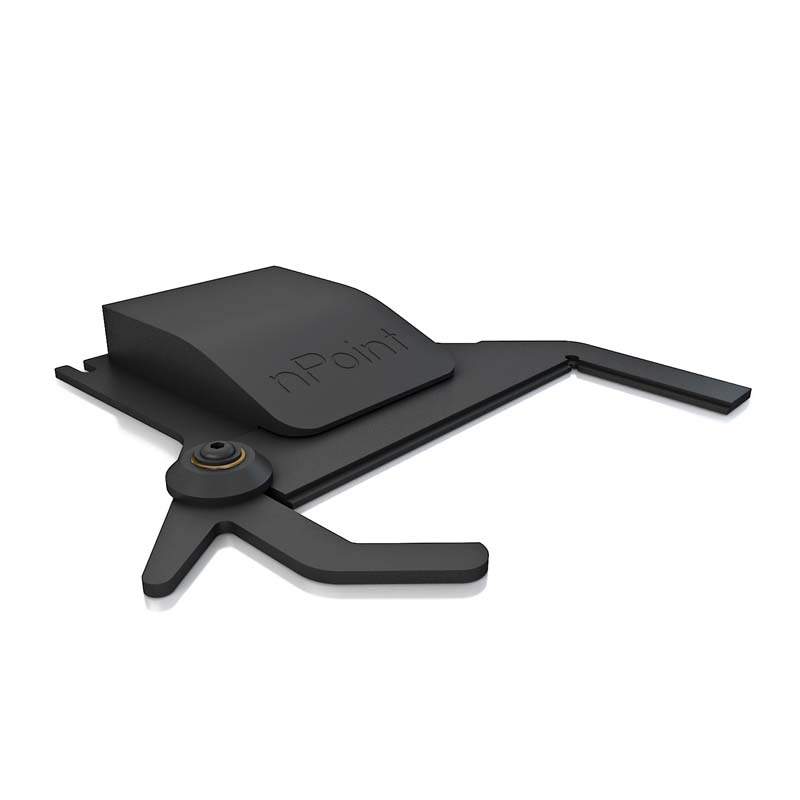

Piezo slide-holder for upright microscopes
Unique piezo slide-holder for upright microscopes.
| Part Number | 3715209 |
| Footprint | 117.5mm W x 108.5mm D x 14mm H |
| Material | Alumninum |
| Maximum Load | 0.3kg |
| Max Force (Push/Pull) | 20N/10N |
| Stage Mass | 100g |
| Nanomotion Control | Z |
| Closed-loop Travel | 100µm |
| Open-loop Travel (-30 to 150 V) | 130µm |
| Position Noise | 3nm |
| Stiffness | 0.2N/µm |
| Resonant Frequency | 400Hz |
| Settling Time | 15ms |
| Linearity Deviation | 0.05% |
| Capacitance | 1.2µF |
| Integrated Sensor | Strain Gauge |
| Cable Length | 2m |
| Controller | LC.400 |
