RXY20-476

Large-range tip-tilt piezo stage

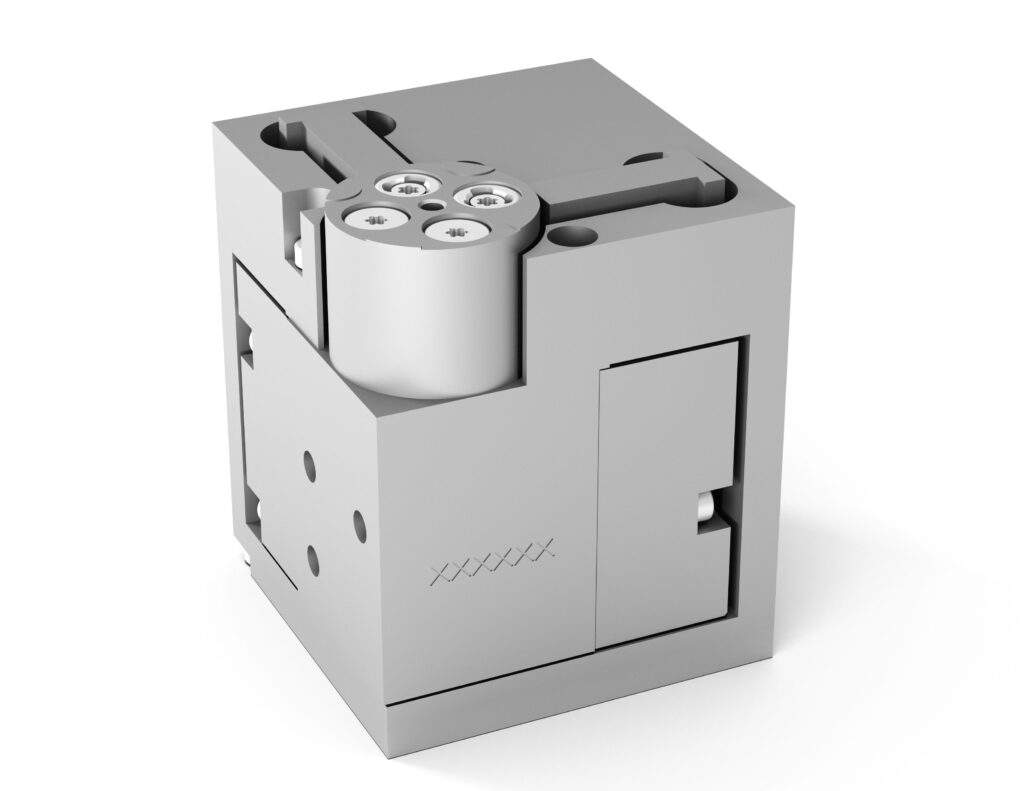

RXY20-476 Nanopositioning Piezo Stage

Compact tip-tilt nanopositioning piezo stage with large range of motion. Designed for open-loop and closed-loop applications.

Request Quote

Compact closed-loop tip-tilt nanopositioning piezo stage with large range of motion.

Part Number3715476
Footprint40.0mm W x 40.0mm D x 49.1mm H
MaterialStainless Steel
Maximum Load2 inch Mirror
Max Force (Push/Pull)NA
Stage Mass425g
Nanomotion ControlTip-Tilt
Closed-loop Travel20mrad
Open-loop Travel (-30 to 150 V)27mrad
Position Noise0.6µrad
Resonant Frequency1200Hz
Settling Time5ms
Linearity Deviation0.10%
Capacitance2.0µF
Integrated SensorStrain Gauge
Cable Length2m
ControllerLC.402
