Shasta 25 (LGS25) Linear-Guide Stage

Shasta 25 linear guide stage

The Vertex Shasta 25 (LGS25) linear-guide stage offers performance linear positioning in a highly configurable assembly. This 25-mm-high actuator is available with both recirculating ball linear guides for high speeds and duty cycles, and lead screws for less demanding applications.

Our Shasta 25 actuators are available with a variety of leads in both the ball-screw and lead-screw versions. Repeatability ranges from 10 µm to 50 µm. The units are best used with loads that are placed directly on the carriage.

Shasta 25 Key Features

  • Configurability
    • Lead-screw and ball-screw versions
    • Lead options
      • Acme lead screws: 0.05-1 in
      • Ball-screws: 2 mm, 3 mm, and 10 mm
    • Available in lengths of up to 1 m
    • Multiple motor flanges
    • Linear encoder option
    • Servo, stepper motor, and integrated motor drive control options
    • Cover option for contamination protection
  • Functionality
    • Anti-backlash lead-screw nut
    • Proximity or photoelectric sensor built in
  • Usability
    • Easy assembly, stackable without additional brackets
  • Quality
    • Rigid linear bearings
    • Lightweight precision aluminum base
    • Clean-room prepped
  • Custom options
    • Clean-room compatible
    • Vacuum compatible
    • Ingress protection
    • The addition of mechanical elements such as brackets



Shasta 25 (LGS25)Shasta 25 linear actuator line drawing (no cover)

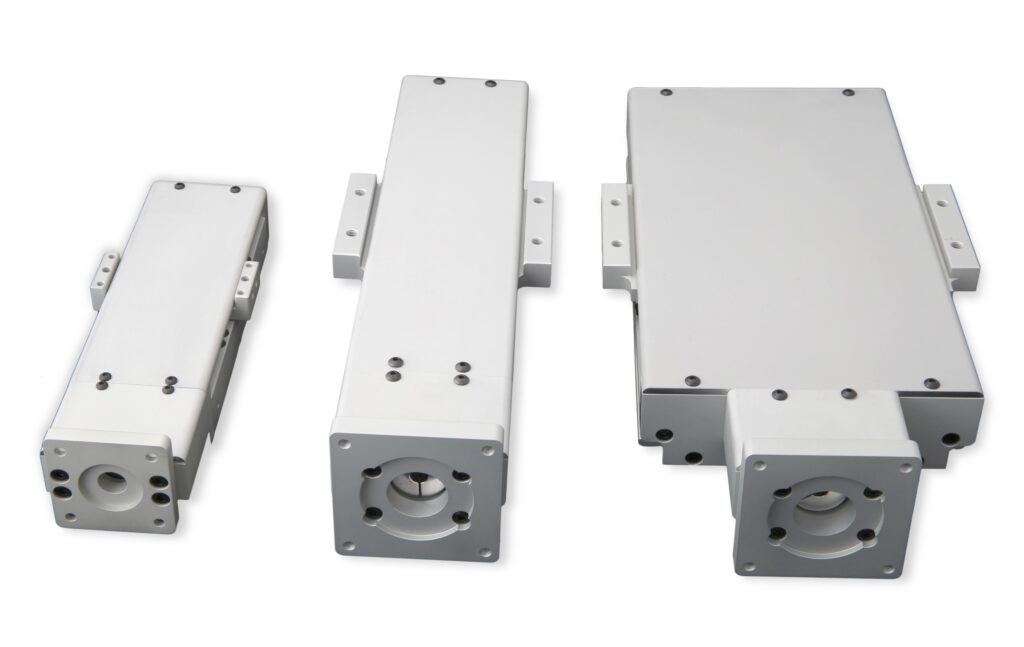

DUST COVER OPTION AVAILABLE

dust covers for Shasta linear guide stages

The dust cover options are ideal for dirty/dusty jobs to help deflect contaminants from directly contacting actuator components.

CRITICAL-SPEED

shasta 25 part numbers

MODEL NO.LEAD IN (LEAD SCREW)
[EX. 250I=0.250"]
SLIDE BLOCK-BASE LENGTH (STROKE)
A-BLOCKB-BLOCKC-BLOCKD-BLOCK
Shasta 25 (LGS25)050IA - SINGLE LONG BLOCK120L(52)N/A120L(79)120L(47)
063IB - DOUBLE LONG BLOCKS204L(136)204L(74)204L(163)204L(131)
250IC - SINGLE SHORT BLOCK288L(220)288L(158)288L(247)288L(215)
D - DOUBLE SHORT BLOCKS372L(304)372L(242)372L(331)372L(299)
456L(388)456L(326)456L(415)456L(383)
540L(472)540L(410)540L(499)540L(467)
624L(556)624L(494)624L(583)624L(523)
708L(640)708L(578)708L(667)708L(635)
*consult motion solution for custom length
NUT TYPE MOTOR BRACKETCOVER OPTIONSENSOR OPTION (SEE TABLE 3)SPECIAL OPTIONS
A = ANTI-BACKLASH LEAD SCREW NUTB0 = NO MOTOR FLANGE1 = NO COVER0 = NO SENSORSBLANK = NOTHING
P = PLAIN LEAD SCREW NUTB1 = NEMA 17 MOUNT2 = WITH COVER2K = NPN PROXIMITIY SENSOR KIT (2 NC)SPECIAL LUBRICATION
*SPECIFY TYPE OF LUBRICATION IN DESCRIPTION
B2 = NEMA 14 MOUNT21 = NPN PROXIMITIY SENSOR KIT (2 NC, 1 NO)
B3 = WRAP BRACKET FOR NEMA 142KP = PNP PROXIMITIY SENSOR KIT (2 NC)INCLUDE MOTOR
*MUST SPECIFIY MOTOR P/N IN DESCRIPTION
R0 = EXPOSED BRACKET21P = PNP PROXIMITY SENSOR KIT (2 NC, 1 NO)
2H = NPN PHOTO SENSOR KIT (2 SENSORS)SPECIAL MACHINING
*SPECIFY CUSTOM MACHINING IN DESCRIPTION
3H = NPN PHOTO SENSOR KIT (3 SENSORS)
2HP = PNP PHOTO SENSOR KIT (2 SENSORS)
3HP = PNP PHOTO SENSOR KIT (3 SENSORS)
CS = CUSTOM SENSOR CONFIGURATION

Load and Accuracy Standard (Linear Guides)

MODELBLOCK TYPESTATIC RADIAL /
REV RADIAL
LOAD CAPACITY
(kN)
STATIC LATERAL
LOAD CAPACITY
(kN)
*DYNAMIC LOAD CAPACITY (kN)PITCH MOMENT
(N-M)
ROLL MOMENT
(N-M)
YAW MOMENT
(N-M)
RUNNING
PARRALELISM
(mm)
Shasta 25 (LGS25)A-BLOCK5.060.483.424836200.13/300
B-BLOCK10.120.966.843117228
C-BLOCK2.530.481.717.5186.5
D-BLOCK5.060.963.42483620

Load and Accuracy Standard (Support Bearing)

MODELPART NUMBERDYNAMIC LOAD
CAPACITY (kN)
STATIC LOAD CAPACITY (kN)
Shasta 25 (LGS25)6940.960.35

Load and Accuracy Standard (Screw)

MODEL LEADSCREW DIAMETERDYNAMIC LOAD CAPACITY (kN)STATIC LOAD CAPACITY (kN)POSITIONING REPEATABILITY
( µ m)
 POSITIONING ACCURACYBACKLASH (µm)
STANDARDPRE-LOADEDSTANDARDPRE-LOADED
Shasta 25 (LGS25) LEAD SCREW0.050"1/4"0.110.915010150µm /300mm20010
0.063"0.110.91
0.25"0.110.91
Shasta 25 (LGS25) BALL SCREW2 mm50.50.8501052µm /300mm15010
3 mm 0.340.49

Mechanical Dimensions

MODELRAIL LENGTHOVERAL LENGTH# OF N HOLES# OF D HOLES
UNITS: mm
Shasta 25 (LGS25)12017144
20425584
288339126
372423168
4565072010
5405912412
6246752812
7087593214
