Shasta 33 (LGS33) Linear-Guide Stage

Shasta 33 linear guide stage

The Vertex Shasta 33 (LGS33) linear-guide stage  offers performance linear positioning in a highly configurable assembly. This 33-mm actuator is available with both recirculating-ball linear guides for high speeds and duty cycles, and lead screws for less demanding applications.

Our Shasta 33 actuators are available with a variety of leads in both the ball-screw and lead-screw versions. Repeatability ranges from 10 µm to 50 µm. The units are best used with loads that are placed directly on the carriage.

Shasta 33 Key Features

  • Configurability
    • Lead-screw and ball-screw versions
    • Lead options
      • Acme lead screws: 0.05–1 in
      • Ball-screws: 2 mm, 3 mm, and 10 mm
    • Available in lengths of up to 1 m
    • Multiple motor flanges
    • Linear encoder option
    • Servo, stepper motor, and integrated motor drive control options
    • Cover option for contamination protection
  • Functionality
    • Anti-backlash lead-screw nut
    • Proximity or photoelectric sensor built in
  • Usability
    • Easy assembly, stackable without additional brackets
  • Quality
    • Rigid linear bearings
    • Lightweight precision aluminum base
    • Clean-room prepped
  • Custom options
    • Clean-room compatible
    • Vacuum compatible
    • Ingress protection
    • The addition of mechanical elements such as brackets

Shasta 33 (LGS33)

Shasta 33 linear actuator line drawing (no cover)

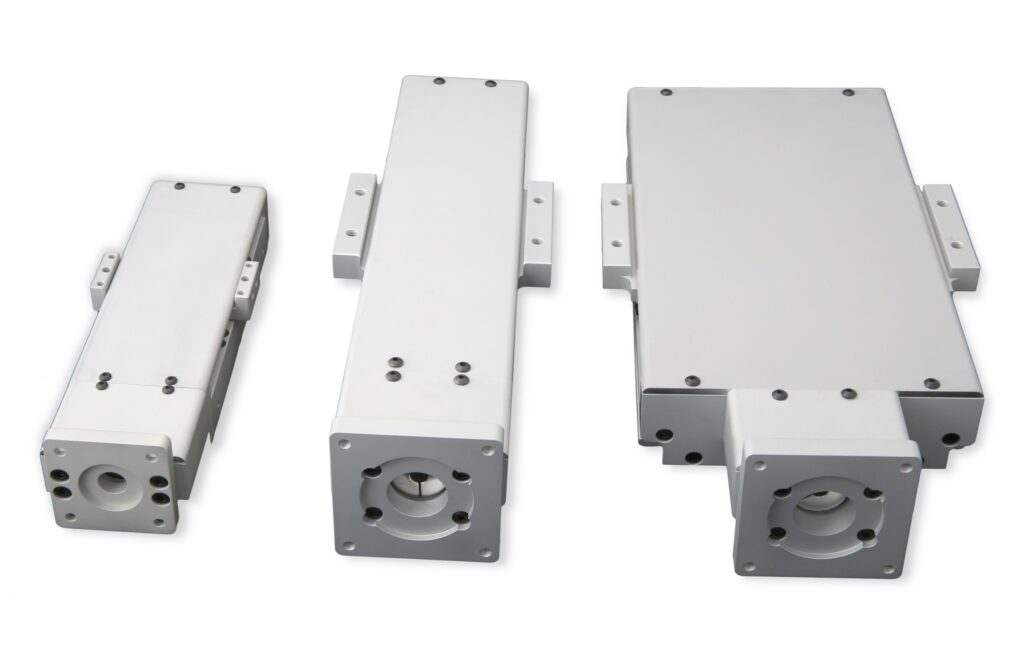

DUST COVER OPTION AVAILABLE

    •
The dust cover options are ideal for dirty/dusty jobs to help deflect containments from directly contacting actuator components.

The dust cover options are ideal for dirty/dusty jobs to help deflect contaminants from directly contacting actuator components.

CRITICAL-SPEED

Shasta-33-PART-NUMBER-CREATION-33

MODEL NO.LEAD IN (LEAD SCREW)
[EX. 250I=0.250"]
LEAD M (BALL SCREW)
[EX. 02M=2MM]
SLIDE BLOCK-BASE LENGTH(STROKE)
A-BLOCKB-BLOCKC-BLOCKD-BLOCKY-BLOCK
Shasta 33 (LGS33)050I02MA - SINGLE LONG BLOCK200L(110)200L(34)200L(135)200L(85)200L(50)
Shasta W33 (LGSW33)100I03MB - DOUBLE LONG BLOCKS300L(210)300L(134)300L(235)300L(185)300L(150)
125I010MC - SINGLE SHORT BLOCK400L(310)400L(234)400L(335)400L(285)400L(250)
200ID - DOUBLE SHORT BLOCKS500L(410)500L(334)500L(435)500L(385)500L(350)
250IY - EXTRA LONG BLOCK (ONLY AVAILABLE FOR Shasta W33 (LGSW33))600L(510)600L(434)600L(535)600L(485)600L(450)
500I700L(610)700L(534)700L(635)700L(585)700L(550)
1000I800L(710)800L(634)800L(735)800L(685)800L(650)
900L(810)900L(734)900L(835)900L(785)900L(750)
1000L(910)1000L(834)1000L(935)1000L(885)1000L(850)
*consult motion solution for custom leads
NUT TYPE MOTOR BRACKETCOVER OPTIONSENSOR OPTION (SEE TABLE 3)SPECIAL OPTIONS
A = ANTI-BACKLASH LEAD SCREW NUTB0 = NO MOTOR FLANGE1 = NO COVER0 = NO SENSORSBLANK = NOTHING
P = PLAIN LEAD SCREW NUTB1 = NEMA 23 MOUNT2 = WITH COVER2K = NPN PROXIMITIY SENSOR KIT (2 NC)SPECIAL LUBRICATION
*SPECIFY TYPE OF LUBRICATION IN DESCRIPTION
N = MIN. CLEARANCE BALL NUTB2 = NEMA 17 MOUNT2KP = PNP PROXIMITIY SENSOR KIT (2 NC)
S = STANDARD BALL NUTB3 = WRAP BRACKET FOR NEMA 1721 = NPN PROXIMITIY SENSOR KIT (2 NC, 1 NO)INCLUDE MOTOR
*MUST SPECIFIY MOTOR P/N IN DESCRIPTION
R0 = EXPOSED BRACKET21P = PNP PROXIMITY SENSOR KIT (2 NC, 1 NO)
2H = NPN PHOTO SENSOR KIT (2 SENSORS)SPECIAL MACHINING
*SPECIFY CUSTOM MACHINING IN DESCRIPTION
2HP = PNP PHOTO SENSOR KIT (2 SENSORS)
3H = NPN PHOTO SENSOR KIT (3 SENSORS)
3HP = PNP PHOTO SENSOR KIT (3 SENSORS)
CS = CUSTOM SENSOR CONFIGURATION

Load and Accuracy Standard (Linear Guides)

MODELBLOCK TYPESTATIC RADIAL /
REV RADIAL
LOAD CAPACITY
(kN)
STATIC LATERAL
LOAD CAPACITY
(kN)
*DYNAMIC LOAD CAPACITY (kN)PITCH MOMENT
(N-M)
ROLL MOMENT
(N-M)
YAW MOMENT
(N-M)
RUNNING
PARRALELISM
(mm)
Shasta 33 (LGS33)A-BLOCK6.760.485.12133109250.13/300
B-BLOCK13.520.9610.2438521872
C-BLOCK3.380.482.5625.4546
D-BLOCK6.760.965.1225621848

Load and Accuracy Standard (Support Bearing)

MODELPART NUMBERDYNAMIC LOAD
CAPACITY (kN)
STATIC LOAD CAPACITY (kN)
Shasta 33 (LGS33)6262.330.89

Load and Accuracy Standard (Screw)

MODEL LEADSCREW DIAMETERDYNAMIC LOAD CAPACITY (kN)STATIC LOAD CAPACITY (kN)POSITIONING REPEATABILITY
(µm)
 POSITIONING ACCURACYBACKLASH (µm)
STANDARDPRE-LOADEDSTANDARDPRE-LOADED
Shasta 33 (LGS33) LEAD SCREW0.050"3/8"0.162.185010150µm /300mm20010
0.1"0.162.03
0.125"0.11.27
0.2"0.11.29
0.25"0.11.27
0.5"0.11.27
1"0.11.18
Shasta 33 (LGS33) BALL SCREW2 mm10mm2.73.8501052µm /300mm15010
3 mm2.85
10 mm2.85

Mechanical Dimensions

MODELRAIL LENGTHOVERAL LENGTH# OF N HOLES# OF D HOLES
UNITS: mm
Shasta 33 (LGS33)2002594N/A
3003596
4004598
50055910
60065912
70075914
80085916
90095918
1000105920
