Life Sciences
Improve instrument throughput with better Z-Axis design.
“Speed is essential for furthering our understanding of biology, and we believe in reducing the time needed to acquire high-quality data and obtain clear, high-quality results, Motion Solutions was instrumental in achieving that goal, with a custom Z-Axis direct drive stage.”
Sr. Mechanical Engineer
Life Sciences Company, CA

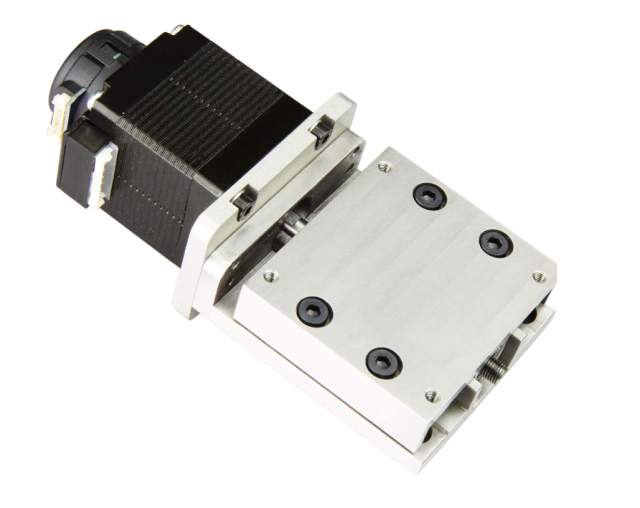

Lead or Ball Screw Stroke:
12 mm & 25 mm
Accuracy: 7.5 µm
Repeatability: 2.5 µm
Resolution: 0.1 µm
Load: 10 kg
Size (mm): 40 x 40 x 15

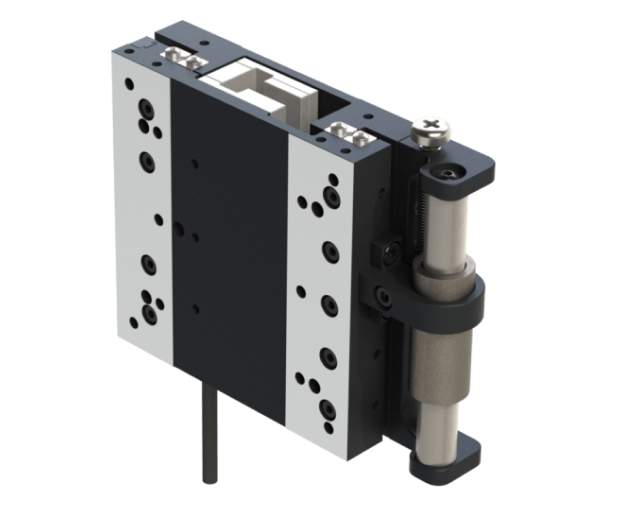

Linear Motor Stroke: 45 mm
Accuracy: 4 µm
Repeatability: 0.8 µm
Resolution: 0.05
Load: 2 Kg
Size (mm): 110 x 84 x 25

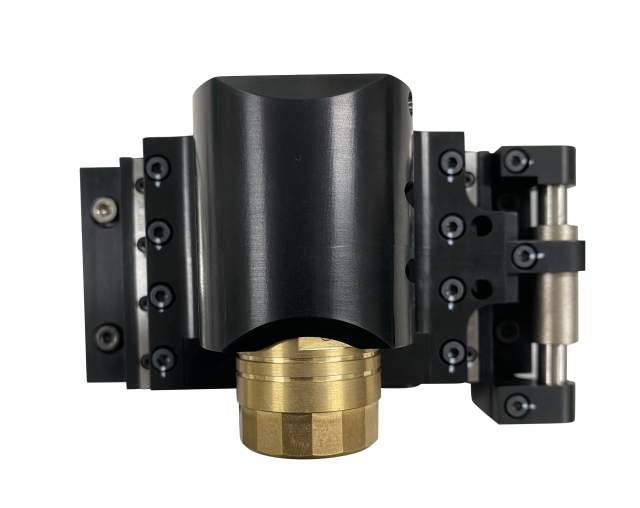

nPLV70
Voice Coil Stroke: 10 mm
Accuracy: 6 µm
Repeatability: 0.5 µm
Resolution: 0.05
Load: 0.3 kg
Size (mm): 110 x 63 x 35

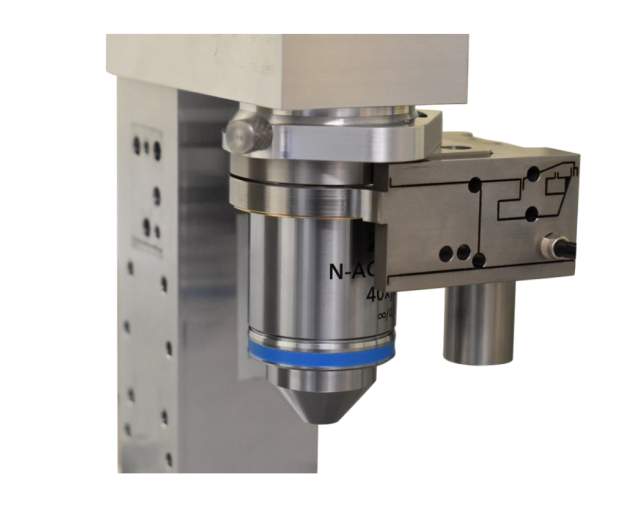

Piezo Stroke: 1 mm
Accuracy: 0.2 µm
Repeatability: 0.05 µm
Resolution: 0.005
Load: 0.8 Kg
Size (mm): 63 x 50 x 33
Motion Solutions Services
Our services include:
- Electro-mechanical sub-assemblies
- Custom stage design consulting
- Motor Sizing and Selection
- Value Analysis/Value Engineering (VA/VE)
