Step and Settle or Continuous Scanning to achieve higher throughput?
How does stage flatness impact your Optical Imaging Application?
Contact us to learn more.
“Our instrument relies on excellent stage flatness to reduce focusing time and increase overall throughput to meet our customer requirements. Motion Solutions delivered a stage that helped us meet our goals and reduced overall design timeline.”
VP of Engineering
Life Sciences Start Up, CA

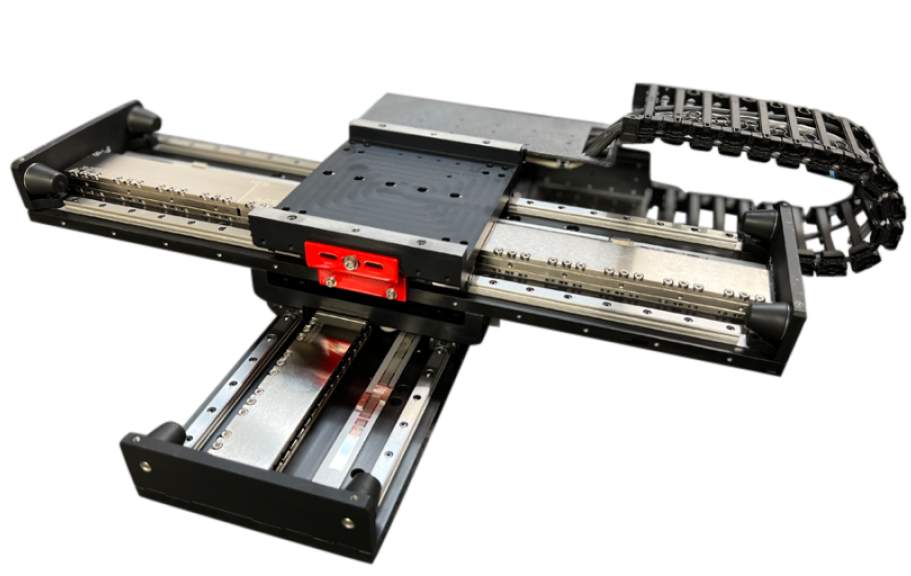

System Specifications
Strokes, Minimum:
- BOTTOM AXIS (Y-AXIS): 200mm
- TOP AXIS (X-AXIS): 270mm
Max Velocity: 60 mm/s
Max Acceleration: 12 m/s^2
Accuracy (Tune-Dependent): ± 8 μm, Error Mapped
Repeatability (Tune-Dependent): 0.8 μm, Bi-Directional
Payload: 4 KG
Perpendicularity: 10 Arc-Seconds
Flatness, Per Axis, In Imaging Area: 15 μm
Straightness, Per Axis, In Imaging Area: 10 μm

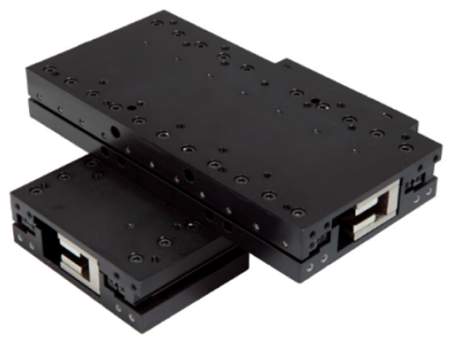

Linear Motor
Length: 84, 168, 210 mm
Stroke: 25, 45, 100, 150 mm
Accuracy: 4 -14 µm
Repeatability: 0.4- 2 µm
Straightness & Flatness: 4- 8 µm
Load: 10Kg
- Stackable without interface plates
- No moving cables
- High bandwidth
- Fast response
- Rapid settling time
- Compact profile (25 mm high)
- Integrated limit sensors
- Cleanroom option
- Anticorrosion treatments
- Custom solutions available
Motion Solutions Services
Our services include:
- Electro-mechanical sub-assemblies
- Custom stage design consulting
- Motor Sizing and Selection
- Value Analysis/Value Engineering (VA/VE)
