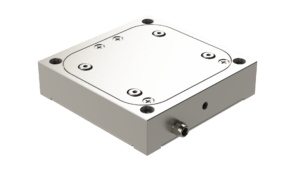

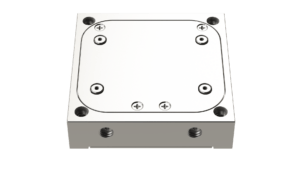

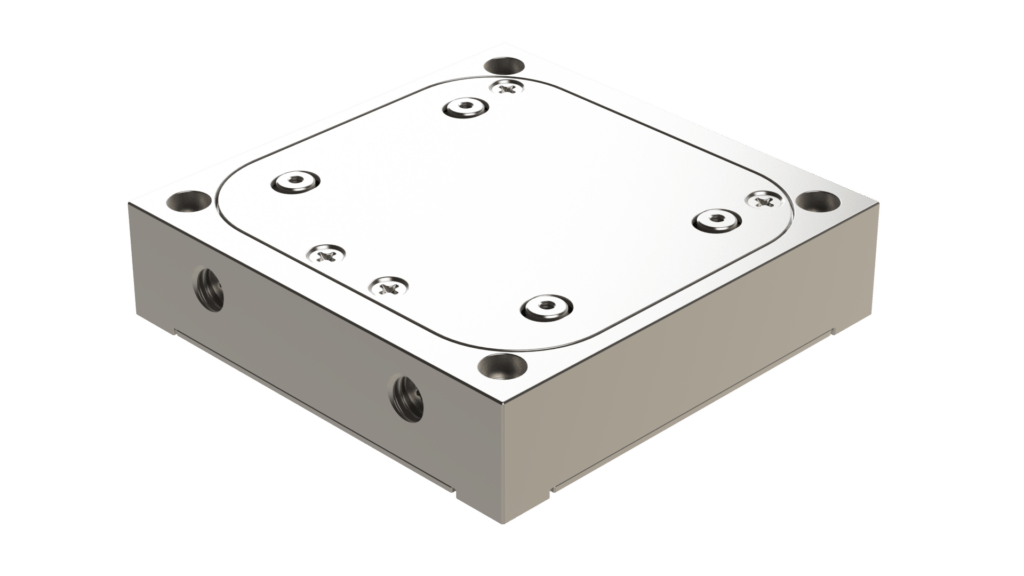

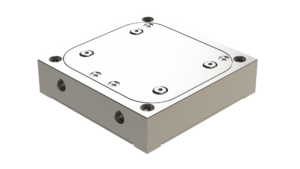

nPX600
Compact piezo stage
Compact nanopositioning piezo stage with 600µm range.
| Part Number | 3715505 |
| Footprint | 72mm W x 76mm D x 18mm H |
| Material | Stainless Steel |
| Maximum Load | 300g |
| Max Force (Push/Pull) | 50N/20N |
| Stage Mass | 560 |
| Nanomotion Control | X |
| Closed-loop Travel | 600µm |
| Open-loop Travel (-30 to 150 V) | 700µm |
| Position Noise | 3nm |
| Stiffness | 0.4N/µm |
| Resonant Frequency | 165Hz |
| Settling Time | 25ms |
| Linearity Deviation | 0.01% |
| Capacitance | 6.5µF |
| Integrated Sensor | Capacitive |
| Cable Length | 2m |
| Controller | LC.400 |

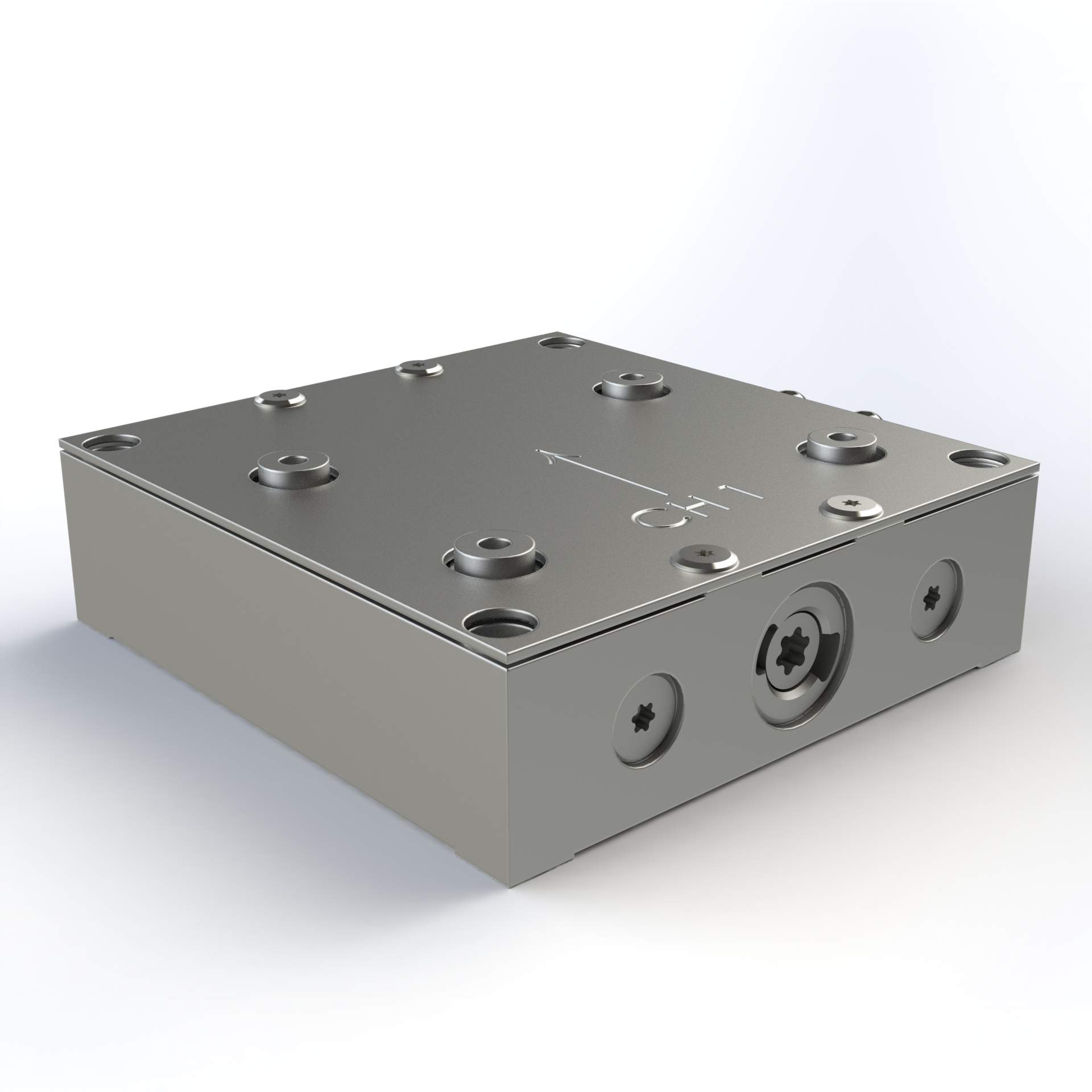

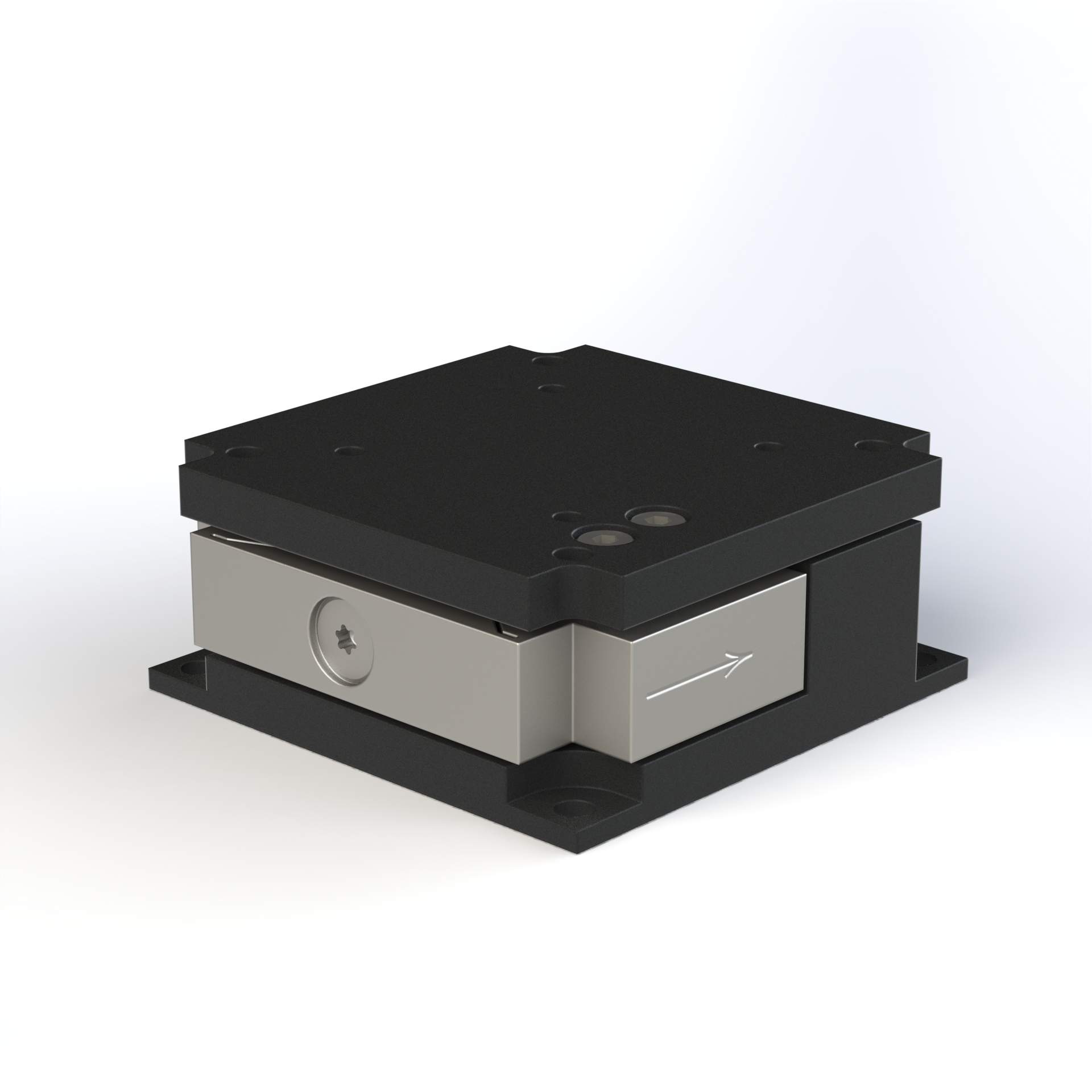

Here are the different products or controllers that are related to this product:
