LGS25 Stage

Linear Guide Stage, 25mm height

The LGS25 linear-guide stage offers performance linear positioning in a highly configurable assembly. This 25-mm-high actuator is available with both recirculating ball linear guides for high speeds and duty cycles, and lead screws for less demanding applications.

Our 25 actuators are available with a variety of leads in both the ball-screw and lead-screw versions. Repeatability ranges from 10 µm to 50 µm. The units are best used with loads that are placed directly on the carriage.

LGS25 Key Features

Configurability

  • Lead-screw and ball-screw versions
  • Lead options
    • Acme lead screws: 0.05-1 in
    • Ball-screws: 2 mm, 3 mm, and 10 mm
  • Available in lengths of up to 1 m
  • Multiple motor flanges
  • Linear encoder option
  • Servo, stepper motor, and integrated motor drive control options
  • Cover option for contamination protection

Functionality

  • Anti-backlash lead-screw nut
  • Proximity or photoelectric sensor built in

Usability

  • Easy assembly, stackable without additional brackets

Quality

  • Rigid linear bearings
  • Lightweight precision aluminum base
  • Clean-room prepped

Custom options

  • Clean-room compatible
  • Vacuum compatible
  • Ingress protection
  • The addition of mechanical elements such as brackets

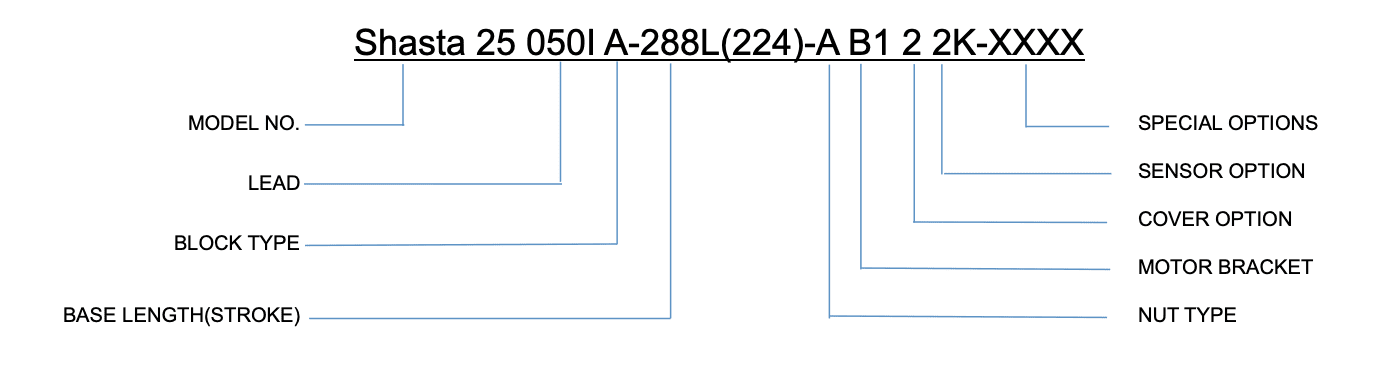

Shasta 25 (LGS25) Diagram

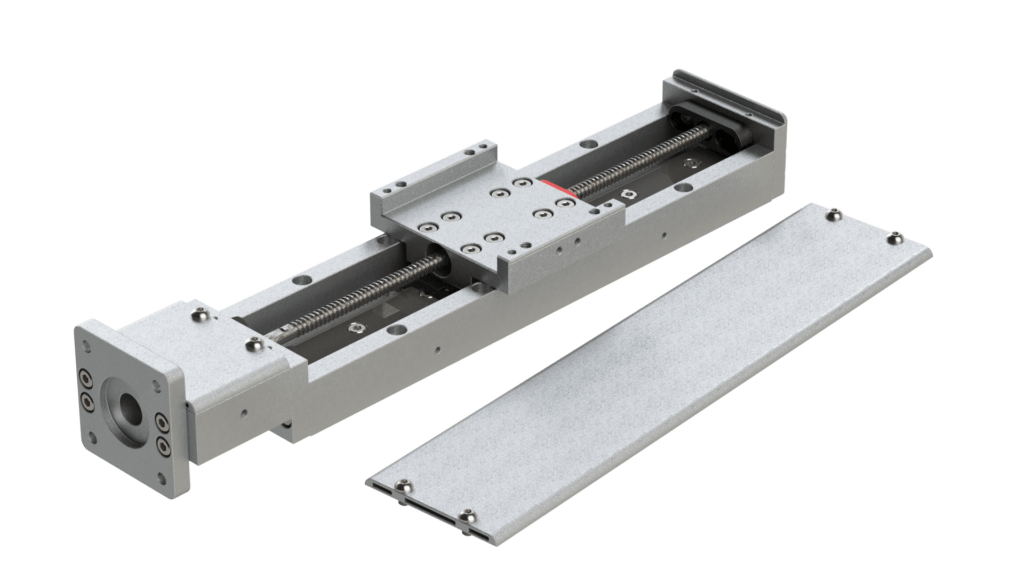

Dust Cover Option Available

The dust cover options are ideal for dirty/dusty jobs to help deflect contaminants from directly contacting actuator components.

The dust cover options are ideal for dirty/dusty jobs to help deflect contaminants from directly contacting actuator components.

CRITICAL-SPEED

LGS25 part numbers

Lead

Slide Block

Base Length (Stroke)

Nut Type

Motor Bracket

Cover Option

Sensor Option

Special Options

Load and Accuracy Standard (Linear Guides)

Load and Accuracy Standard (Support Bearing)

Load and Accuracy Standard (Screw)

Mechanical Dimensions
