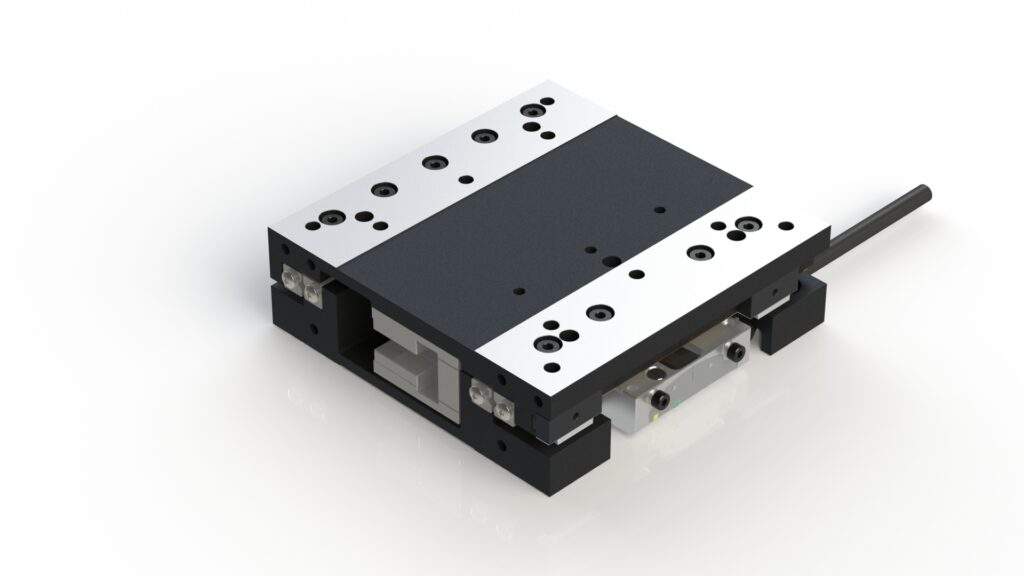

nPL70S Stage
Linear Motor Stage
| Performance Specifications | nPL70S-1M | nPL70S-2M |
|---|---|---|
| Maximum Travel | 45 mm | 25 mm |
| Encoder resolution | 0.01 µm 0.1 µm 1.0 µm | 0.01 µm 0.1 µm 1.0 µm |
| Accuracy (Full Travel ISO 230) | 4 µm 6 µm 10 µm | 4 µm 6 µm 10 µm |
| Bi-directional Repeatability (Full Travel) | ± 0.4 µm ± 0.5 µm ± 2.0 µm | ± 0.4 µm ± 0.5 µm ± 2.0 µm |
| Straightness & Flatness | 4 µm | 4 µm |
| Pitch & Yaw | 50 µrad | 50 µrad |
| Maximum Velocity (unloaded) | 1.30 m/s | 1.37 m/s |
| Normal Load Capacity | 10 Kg | 10 Kg |
| Peak Force | 11.9 N | 23.8 N |
| Continuous Force | 3.0 N | 6.0 N |
| Duty Cycle | 100% | 100% |
| Stage Material | Al | Al |
| Stage Mass | 563 gr | 588 gr |
| Moving Carriage Mass | 327 gr | 327 gr |
| Cable Length | 1 m | 1 m |
| Motor Control Specifications | 1M | 2M |
|---|---|---|
| Motor Constant | 1.67 N/√W | 2.42 N/√W |
| Continuous Power | 3.20 W | 6.10 W |
| Peak Power | 50.90 W | 97.10 W |
| Electrical Cycle | 21.00 mm | 21.00 mm |
| Max Bus Voltage | 60.00 V | 60.00 V |
| Max Coil Temperature | 125.00 °C | 125.00 °C |
| Thermal Dissipation Constant | 0.04 W/°C | 0.08 W/°C |
| Continuous Current | 1.70 Arms | 1.70 Arms |
| Peak Current | 6.80 Arms | 6.80 Arms |
| Force Constant | 1.75 N/Arms | 3.50 N/Arms |
| Back EMF Constant | 1.40 Vpk/(m/s) | 2.90 Vpk/(m/s) |
| Inductance | 0.11 mH | 0.22 mH |
| Thermal Resistance @25 °C | 1.10 Ohms | 2.10 Ohms |
| Electrical Time Constant | 0.10 ms | 0.10 ms |
